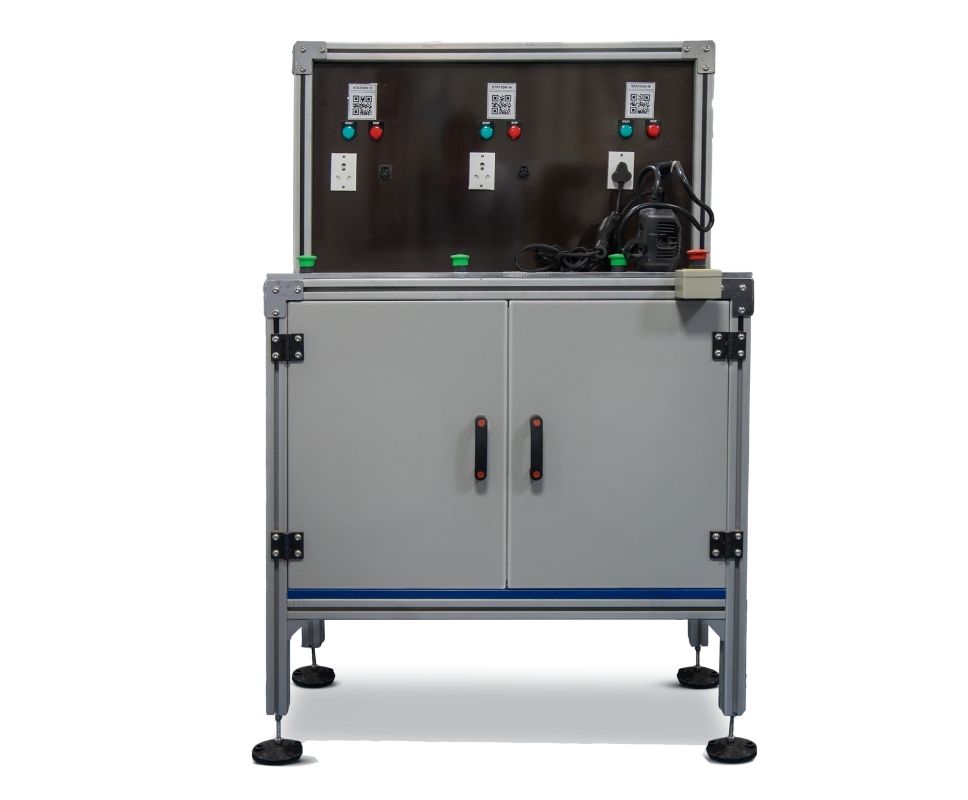

The EV Charger Aging Tester is an automated test system designed to validate the long-term performance, reliability, and safety of EV chargers under continuous operating conditions. Built on National Instruments LabVIEW, the system supports parallel aging of multiple chargers using regenerative DC loads for energy-efficient testing.
| TYPE OF TESTS | SPECIFICATIONS |
|---|---|
| Long-duration charger aging | Continuous operation under full load |
| Continuous load endurance testing | Up to 12 kW |
| Output voltage & current stability | 0 – 120 V DC, 0 – 100 A |
| Test Stations | 42 independent parallel channels |
| Operating Mode | Fully automated, test profile driven |
| AC Input | Direct grid supply |
| DC Load | Regenerative electronic load |
| NI LabVIEW-based control software |
| Independent operation of all test stations |
| Real-time monitoring, limit checking and output in-range verification |
| CAN communication for control and diagnostics |
| Automated data logging and report generation |
| Energy recovery through regenerative loads |
Exeliq powers smarter EV charger aging with scalable, energy-efficient testing solutions. Built on an NI-based platform, our systems deliver high throughput, lower operating costs, full test traceability, and the flexibility to customize for your product, process, and production scale.
