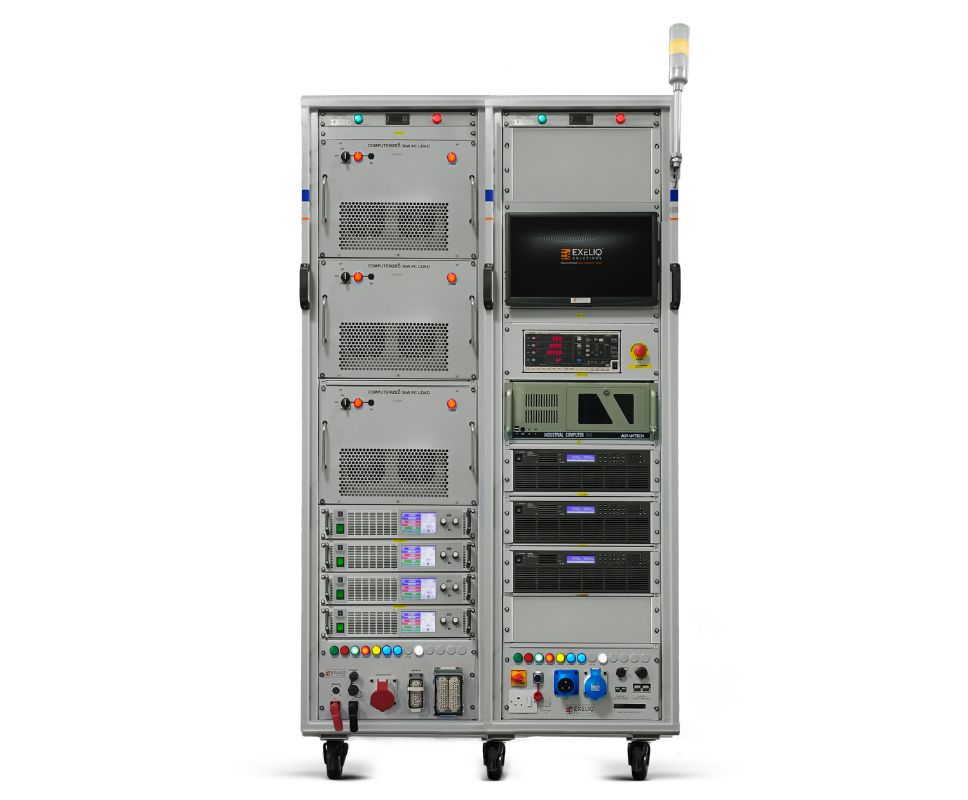

The Grid Tie Inverter Tester (GTI Test System) is an advanced automated platform designed for testing solar inverters up to 120 kW. It performs functional, safety, performance, and burn-in tests to ensure reliability, efficiency, and IEC compliance, making it ideal for manufacturers and R&D laboratories.
| TYPE OF TESTS | SPECIFICATIONS |
|---|---|
| Functional Test | DC Source: up to 1000 V, 300 A per string |
| Performance & MPPT Test | AC Grid Simulator: 120 kVA regenerative, 230/400 V |
| Grid Synchronization & Power Quality Test | Load Bank: 0–120 kW (regenerative / RL) |
| Safety – High Voltage (HV) Test | HV Test: up to 5 kV AC / 6 kV DC |
| Safety – Insulation Resistance (IR) Test | IR Test: up to 1000 V, 1 MΩ - 10 GΩ |
| Earth Bond / Ground Continuity Test | Earth Bond: up to 25 A, <100 mΩ |
| Ageing (Burn-In) Test | Burn-In: 24–240 hrs, load & grid cycling |
| Reliability & Trend Monitoring | Software: LabVIEW automation with data logging |
| All-in-One Test Platform: Combined functional, safety, performance, and burn-in testing in a single integrated system. |
| Regenerative AC/DC Sources: Reduces energy consumption and operational cost during testing. |
| High Power Capability: Supports inverter testing up to 120 kW with programmable voltage and frequency. |
| Integrated Safety Testing: Includes HV, IR, and Earth Bond tests for complete electrical safety compliance. |
| Automated Data Logging & Reports: Generates detailed test reports for traceability and certification. |
| Rugged Industrial Design: Built with full safety interlocks for secure and reliable operation. |
Exeliq delivers modular and customizable Grid Tie Inverter Testing Systems for manufacturing, R&D, and certification labs. Our solutions support Industry 4.0, provide IEC-compliant measurements, and ensure high-accuracy testing with regenerative, cost-efficient operation backed by strong engineering support.
